What is aluminum alloy oil tank truck

It refers to special vehicles for transporting gasoline, diesel, kerosene, lubricants and other liquid fuels. In the transportation of gasoline, diesel and other oil products, especially for gasoline, the use of carbon steel tanks is easy to rust and needs anti-corrosion improvement, otherwise it will contaminate the oil. The aluminum sheet for tankers bulkhead not only is of light weight, but also has good compatibility with oils.

What is the bulkhead of fuel tanker

aluminum alloy load tanker with bulkhead.jpgWhen the capacity of the cylinder is not large, the entire cylinder is treated as a single compartment. if the capacity of the tanker body is large, the tank body can be divided into several independent compartments with bulkhead.

There is no uniform standard for the size of each single compartment of the fuel tanker, which depends on the nature of the goods and the total capacity of the entire tanker body.

Why use bulkhead for the oil tank truck

Tank trucks are the means of transportation of dangerous goods. When oil tank trucks are running at high speed, if they brake suddenly in an unexpected situation, the liquid in the tank will have a huge impact on the tank because of inertia. The installation of bulkheads will reduce such impact. In addition, several different liquids are simultaneously loaded on the same tanker truck.

For the semi trailer truck, if the cylinder is large without bulkhead, the liquid flows to the rear of the cylinder, which will greatly reduce the axle load of the drive shaft of the traction car, and reduce the passing performance of the semi truck.

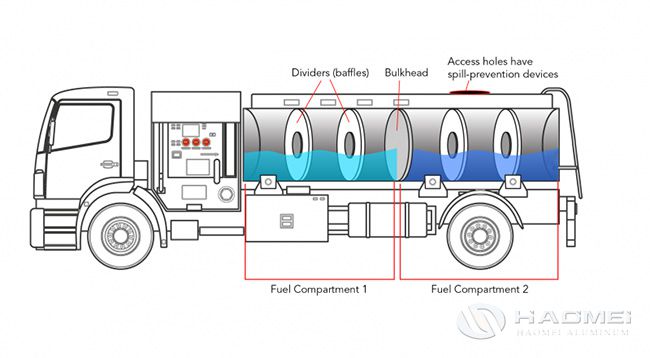

structure of alumnum alloy load tanker.jpgThe aluminum plate for tanker bulkhead

5754 aluminum plate is of medium strength, good corrosion resistance, weldability and easy processing and forming. Different tempers of 5754 aluminum sheets are the main materials used in the automobile and fuel tanker manufacturing industry.
5182 aluminum plate is a high-quality aluminum alloy produced by heat treatment and pre-stretching process. The advantage is that it has good plasticity during semi-cold work hardening, low plasticity during cold work hardening, good corrosion resistance and good weldability.

5083-O temper is also often used as the aluminum sheet for tankers bulkhead. The main alloying element is magnesium. The tensile strength is between 290-345Mpa and the yield strength is between 145-283Mpa.

aluminum plate for tanker bulkhead.jpg

Specification of aluminum plate for tankers for sale

























Why choose Haomei Aluminum

1. he six-high cold rolling mill can produce aluminum plate for tanker bulkhead with a flat pattern and neat trimming.

2. The "1+1" production line provides a strong foundation for the large-scale production of aluminum sheet for tankers bulkhead and further guarantees the good performance of aluminum plates.

3. The melt multi-stage combined purification technology and ensure the purity of the melt reach aviation level. It provides ingot casting guarantee for the production of high-quality aluminum sheet.

4. Haomei aluminum plate for tankers is available for different welding methods such as TIG, MIG, FSW, EBW,etc.

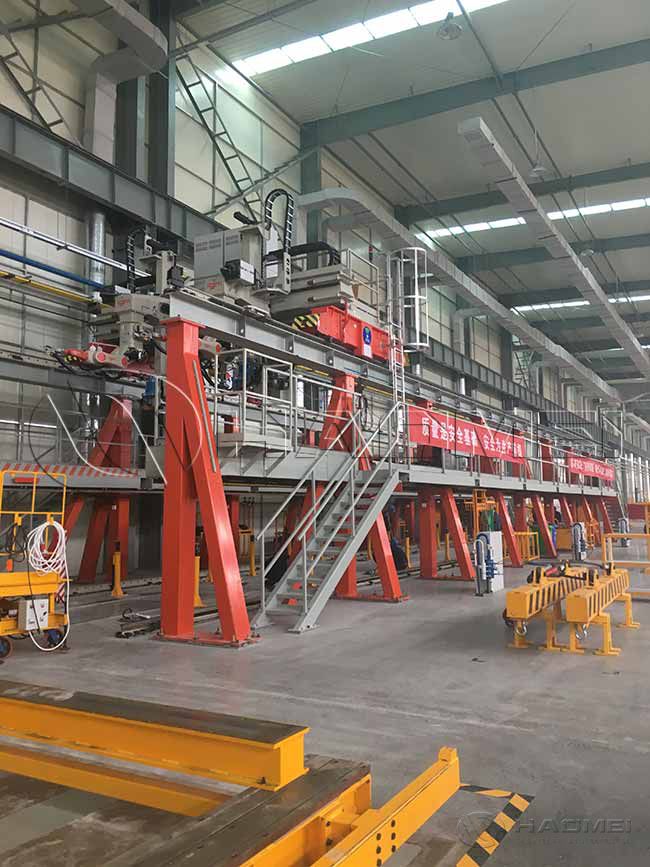

aluminum sheet factory.jpg
